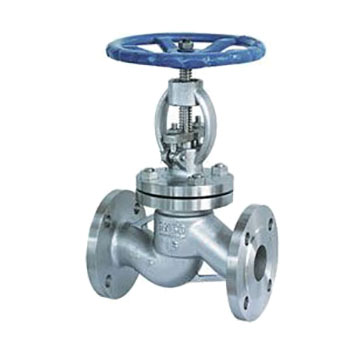

不锈钢截止阀主要零件材质
| 零件名称 Part Name | ZG1Cr18Ni9T i304 CF8 | ZGOOCr18Ni10 304L CF3 | ZG1Cr18Ni12Mo 2Ti316 CF8M | zgoocR17nI14mO2 316L CF3M | WCB |
| 阀体/阀盖 Body/Cap | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | WCB |
| 阀瓣 Valve Piece | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | 1Cr3 |
| 阀杆Stem | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | 1Cr3 |
| 阀杆螺母 Vailve Pole Nut | 铝青铜Aluminium Bronze | ||||
| 填料 Stem Packing | PTFE编织 | PTFE编织 | PTFE编织 | PTFE编织 | 石墨Graphite |
| 垫片 Gasket | 304+PTFE | 304L+PTFE | 316+PTFE | 316L+PTFE | 石墨+304 |
| 螺栓 Bolt | 不锈钢 Stainless Steel | 34GtMoA | |||
| 螺母 Nut | 不锈钢 Stainless Steel | 45 | |||
| 手轮 HandWheel | 球墨铸铁、铸钢 Nodular Cast lron And Cast Steel | ||||
不锈钢截止阀主要连接尺寸
| 型号 Type | 公称通径 DN(mm) | 尺寸（mm） | |||||||
| L | D | D1 | D2 | b-f | Z-φd | H | D0 | ||
| J41W-16 | 15 | 130 | 95 | 65 | 45 | 14-2 | 4-14 | 195 | 100 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-14 | 215 | 120 | |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-14 | 240 | 140 | |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-18 | 250 | 160 | |
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-18 | 285 | 200 | |
| 50 | 230 | 160 | 125 | 100 | 16-3 | 4-18 | 300 | 220 | |
| 65 | 290 | 180 | 145 | 120 | 18-3 | 4-18 | 345 | 240 | |
| 80 | 310 | 195 | 160 | 135 | 20-3 | 8-18 | 350 | 280 | |
| 100 | 350 | 215 | 180 | 155 | 20-3 | 8-18 | 410 | 320 | |
| 125 | 400 | 245 | 210 | 185 | 22-3 | 8-18 | 470 | 350 | |
| 150 | 480 | 280 | 240 | 210 | 24-3 | 8-23 | 495 | 400 | |
| 200 | 600 | 335 | 295 | 265 | 26-3 | 12-23 | 580 | 450 | |
| 250 | 650 | 405 | 355 | 320 | 30-3 | 12-25 | 680 | 550 | |
| 300 | 750 | 460 | 410 | 375 | 30-3 | 12-25 | 850 | 600 | |
| J41W-25 | 15 | 130 | 95 | 65 | 45 | 16-2 | 4-14 | 195 | 100 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-14 | 215 | 120 | |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-14 | 240 | 140 | |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-18 | 250 | 160 | |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-18 | 285 | 200 | |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-18 | 300 | 220 | |
| 65 | 290 | 180 | 145 | 120 | 22-3 | 8-18 | 345 | 240 | |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 8-18 | 350 | 280 | |
| 100 | 350 | 230 | 190 | 160 | 24-3 | 8-23 | 410 | 320 | |
| 125 | 400 | 270 | 220 | 188 | 28-3 | 8-25 | 470 | 350 | |
| 150 | 480 | 300 | 250 | 218 | 30-3 | 8-25 | 495 | 400 | |
| 200 | 600 | 360 | 310 | 278 | 34-3 | 12-25 | 600 | 450 | |
| 250 | 650 | 425 | 370 | 335 | 36-3 | 12-30 | 680 | 550 | |
| 300 | 750 | 485 | 430 | 390 | 40-4 | 16-30 | 850 | 600 | |
不锈钢截止阀主要连接尺寸
| 型号 Type | 公称通径 DN(mm) | 尺寸（mm） | |||||||
| L | D | D1 | D2 | b-f | Z-φd | H | |||
| J41W-40 | 15 | 130 | 95 | 65 | 45 | 40 | 16-2 | 4-14 | 195 |
| 20 | 150 | 105 | 75 | 55 | 51 | 16-2 | 4-14 | 215 | |
| 25 | 160 | 115 | 85 | 65 | 58 | 16-2 | 4-14 | 240 | |
| 32 | 180 | 135 | 100 | 78 | 66 | 18-2 | 4-18 | 250 | |
| 40 | 200 | 145 | 110 | 85 | 76 | 18-3 | 4-18 | 285 | |
| 50 | 230 | 160 | 125 | 100 | 88 | 20-3 | 4-18 | 300 | |
| 65 | 290 | 180 | 145 | 120 | 110 | 22-3 | 8-18 | 345 | |
| 80 | 310 | 195 | 160 | 135 | 121 | 22-3 | 8-18 | 350 | |
| 100 | 350 | 230 | 190 | 160 | 150 | 24-3 | 8-23 | 410 | |
| 125 | 400 | 270 | 220 | 188 | 176 | 28-3 | 8-25 | 470 | |
| 150 | 480 | 300 | 250 | 218 | 204 | 30-3 | 12-30 | 495 | |
| 200 | 600 | 375 | 320 | 282 | 260 | 38-3 | 4-14 | 600 | |
| J41H-64 | 15 | 170 | 105 | 75 | 55 | 41 | 18-2 | 4-18 | 230 |
| 20 | 190 | 125 | 90 | 68 | 51 | 20-2 | 4-18 | 250 | |
| 25 | 210 | 135 | 100 | 78 | 58 | 22-2 | 4-23 | 260 | |
| 32 | 230 | 150 | 110 | 82 | 66 | 24-2 | 4-23 | 300 | |
| 40 | 260 | 165 | 125 | 95 | 76 | 24-3 | 4-23 | 330 | |
| 50 | 300 | 175 | 135 | 105 | 88 | 26-3 | 8-23 | 380 | |
| 65 | 340 | 200 | 160 | 130 | 110 | 28-3 | 8-23 | 400 | |
| 80 | 380 | 210 | 170 | 140 | 121 | 30-3 | 8-23 | 430 | |
| 100 | 430 | 250 | 200 | 168 | 150 | 32-3 | 8-25 | 500 | |
| 125 | 500 | 295 | 240 | 202 | 176 | 36-3 | 8-30 | 600 | |
| 150 | 550 | 340 | 280 | 240 | 204 | 38-3 | 8-34 | 680 | |
| 200 | 650 | 405 | 345 | 300 | 260 | 44-3 | 12-34 | 800 | |
